Add the Standard Detector Plugins#

In Create an IOC Instance you built bl01t-ea-cam-01, a simulated area detector with just a camera and a Standard Arrays plugin. Real detectors want more: live statistics, regions of interest, a file writer. This tutorial vendors a set of AreaDetector plugins into that same instance, using ibek pattern: pinned, integrity-hashed, and loaded at runtime with no image rebuild. Substitute your own names throughout.

Note

detectorPlugins provides a light set of four plugins, and is the recommended set for Diamond II. The prior gdaPlugins pattern also published in the same repo matches what we used to ship with builder IOCs.

For non DLS users this just serves as a useful example and you are free to create your own pattern repositories.

By the end you will have:

  • the detectorPlugins pattern vendored into bl01t-ea-cam-01 at a pinned version, recorded in runtime-lock.yaml;

  • four extra plugins — PVA, statistics, ROI-statistics and an HDF5 file writer — each with an auto-generated Phoebus screen.

Note

This continues directly from Create an IOC Instance; you need the bl01t-ea-cam-01 instance from that tutorial. Run the ibek pattern commands on your workstation with ibek ≥ 4.6.1 installed (or prefix them with uvx --from ibek).

Vendor the plugin pattern#

detectorPlugins lives in the public ibek-runtime-support library — one of two pattern libraries ibek knows about out of the box. From the services-repo root, vendor it into the instance:

cd t01-services
ibek pattern add ibek-runtime-support:detectorPlugins@v0.1.0 services/bl01t-ea-cam-01

The qualified name is <library>:<pattern>@<tag>. That one command:

Step

Result

Copies the pattern’s file-set into config/

here just detectorPlugins.ibek.support.yaml, with a # Vendored from … — DO NOT EDIT header prepended

Pins + hashes it in runtime-lock.yaml

records the version, source and a per-file sha256

Regenerates the instance’s ioc.schema.json

merges the vendored entity models into your image’s schema, so the editor validates the new entity

Note

runtime-lock.yaml is written at the instance root, not inside config/. Only config/ is mounted into the container, so it stays the small runtime-input bundle; the lock is developer-side metadata.

The local ioc.schema.json#

The last step writes a per-instance ioc.schema.json so your editor knows about the entities you just vendored. ibek reads the image you pinned in compose.yml, fetches that image’s published schema, and merges the vendored pattern’s entity models into it. The result is written next to compose.yml at the instance root (it is developer-side metadata, so it is not mounted into the container), and the schema line at the top of config/ioc.yaml is rewritten from the remote URL you set in Create an IOC Instance to point at the new sibling file:

# yaml-language-server: $schema=../ioc.schema.json

That schema is now the union of the image’s compiled-in entities and the vendored pattern’s — so when you add the plugin entity in the next step, the editor offers completion and validation for detectorPlugins.detectorPlugins just as it did for the camera. Re-run it standalone any time the vendored set changes with ibek pattern schema services/bl01t-ea-cam-01.

Note

The schema is regenerated only if the image has published a schema release (as ioc-adsimdetector does). A generic image without one is reported and skipped — vendoring still works, you just edit ioc.yaml without local validation for the new entities.

Add the plugin entity#

The vendored support file supplies a detectorPlugins.detectorPlugins entity_model. Append a single entity for it to services/bl01t-ea-cam-01/config/ioc.yaml:

  - type: detectorPlugins.detectorPlugins
    P: BL01T-EA-CAM-01
    CAM: DET.DET          # the simDetector PORT from create_ioc
    PORTPREFIX: DET

CAM is the camera’s Asyn port (DET.DET, the simDetector from Create an IOC Instance); PORTPREFIX namespaces the new plugin ports (DET.stat, DET.hdf5, …) so they cannot clash with the camera or the existing NDStdArrays port DET.ARR.

This one entity expands — via the support def’s sub_entities — into the four plugins of the lighter Ophyd set, all already compiled into the AreaDetector image:

Plugin

PV prefix

What it does

NDPvxsPlugin

BL01T-EA-CAM-01:PVA:

re-publishes the camera image over pvAccess as one structured PV

NDStats

BL01T-EA-CAM-01:STAT:

live frame statistics — min/max/mean/sigma, centroid, histogram

NDROIStat

BL01T-EA-CAM-01:ROISTAT:

lightweight per-region statistics for up to 8 ROIs

NDFileHDF5

BL01T-EA-CAM-01:HDF5:

writes frames to HDF5 files on disk

Note

The library also ships a heavier gdaPlugins model (ROIs, process, overlay, TIFF, ffmpeg stream, …). Stick with the light detectorPlugins set here — gdaPlugins pulls in ffmpegServer, which the ioc-adsimdetector image does not build.

Run it and view the new screens#

Restart the instance so its start.sh re-runs ibek runtime generate2, which discovers the vendored config/detectorPlugins.ibek.support.yaml and expands the new entity:

source ./environment.sh
docker compose restart bl01t-ea-cam-01

PVI generates one engineering screen per new plugin under opi/auto-generated/bl01t-ea-cam-01/, and adds them to that IOC’s index.bob. Open auto-generated/bl01t-ea-cam-01/index.bob in Phoebus (as in Run It and View the Screens) and new panels appear alongside the camera: a statistics panel plotting live mean/sigma and a histogram, a ROI-statistics panel, an HDF5 file-writer panel (file path, name, capture), and a PVA panel exposing the image as a single pvAccess PV. Hit Acquire on the camera and the stats and ROI plots update per frame.

../_images/SimDetPlugins.png

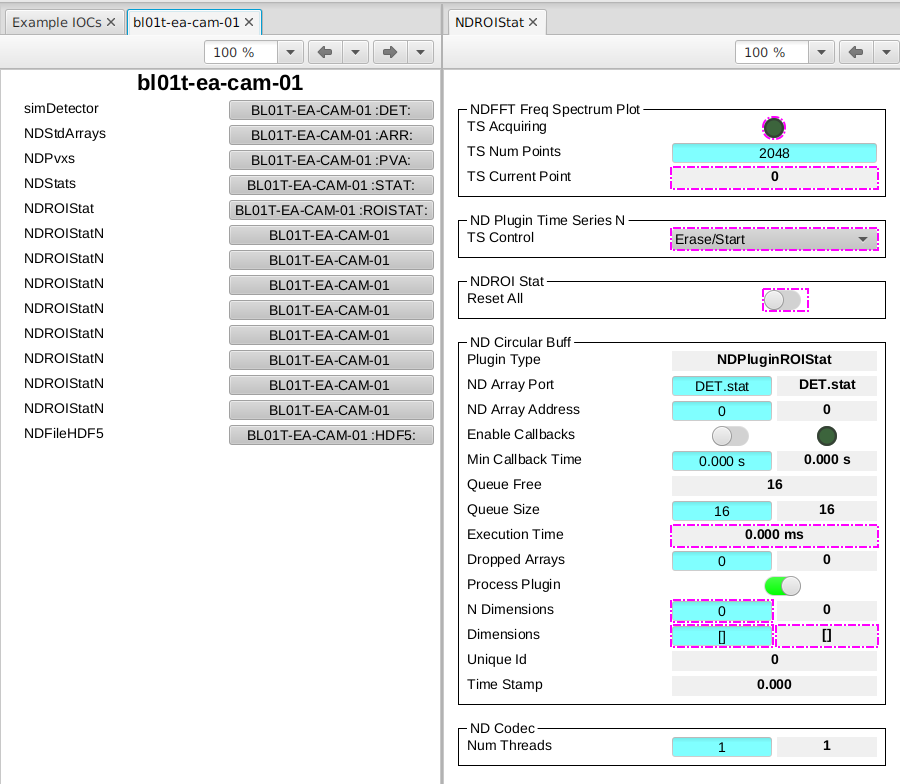

The auto-generated plugin panels for bl01t-ea-cam-01 in Phoebus, alongside the camera — statistics, ROI-statistics, HDF5 file writer and PVA.#

Check what your IOC is running#

Because every vendored file is hashed in runtime-lock.yaml, “what support is this IOC running?” is answerable from git with certainty. Re-verify the vendored files against their pins at any time — ideal in CI or a pre-commit hook:

ibek pattern check services/bl01t-ea-cam-01

It re-hashes each file and exits non-zero on any drift. To move to a newer release later, ibek pattern update services/bl01t-ea-cam-01 --name detectorPlugins -v <tag> re-pins and refreshes the hashes.

Commit#

This instance is reused by later tutorials, so commit the vendored config/detectorPlugins.ibek.support.yaml and runtime-lock.yaml:

git add .
git commit -m "Vendor detectorPlugins into bl01t-ea-cam-01"
