Recommend Server Hardware#

This hardware has been tested at DLS and is known to work well as a usb-remote server.

If you choose this hardware then a pre-configured Raspberry Pi usb-remote server image is available to download, see the Raspberry Pi Commissioning Guide.

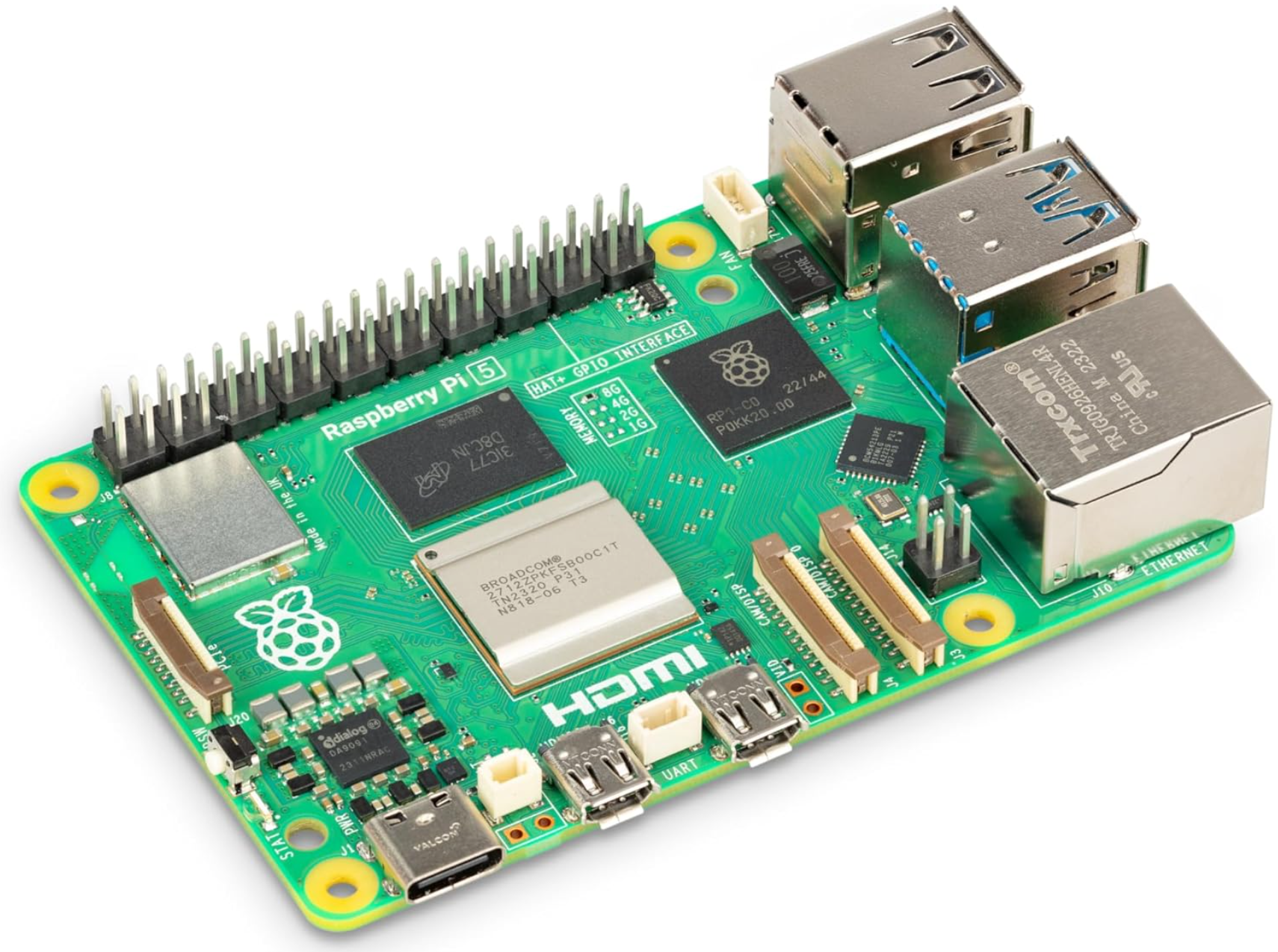

Raspberry Pi 5 8GB RAM#

Raspberry 4 is also suitable, I have also found 2GB RAM models to work fine.

Raspberry Pi 5

MicroSD Card 16GB#

e.g. SanDisk Ultra 16GB or larger.

SanDisk Ultra

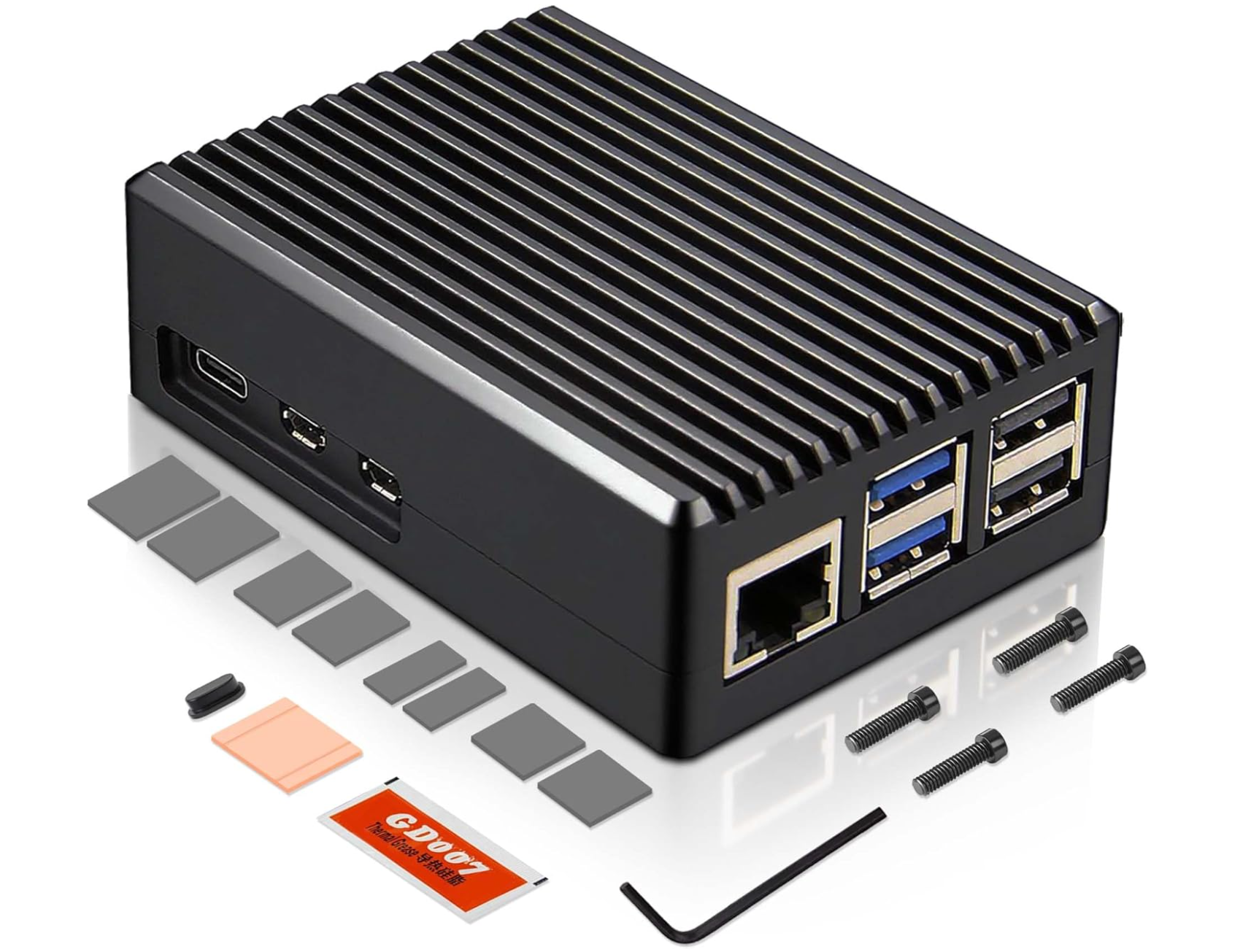

High Quality Passively Cooled Case#

e.g.Geekworm Raspberry Pi 5 Case (P573)

Geekworm Case

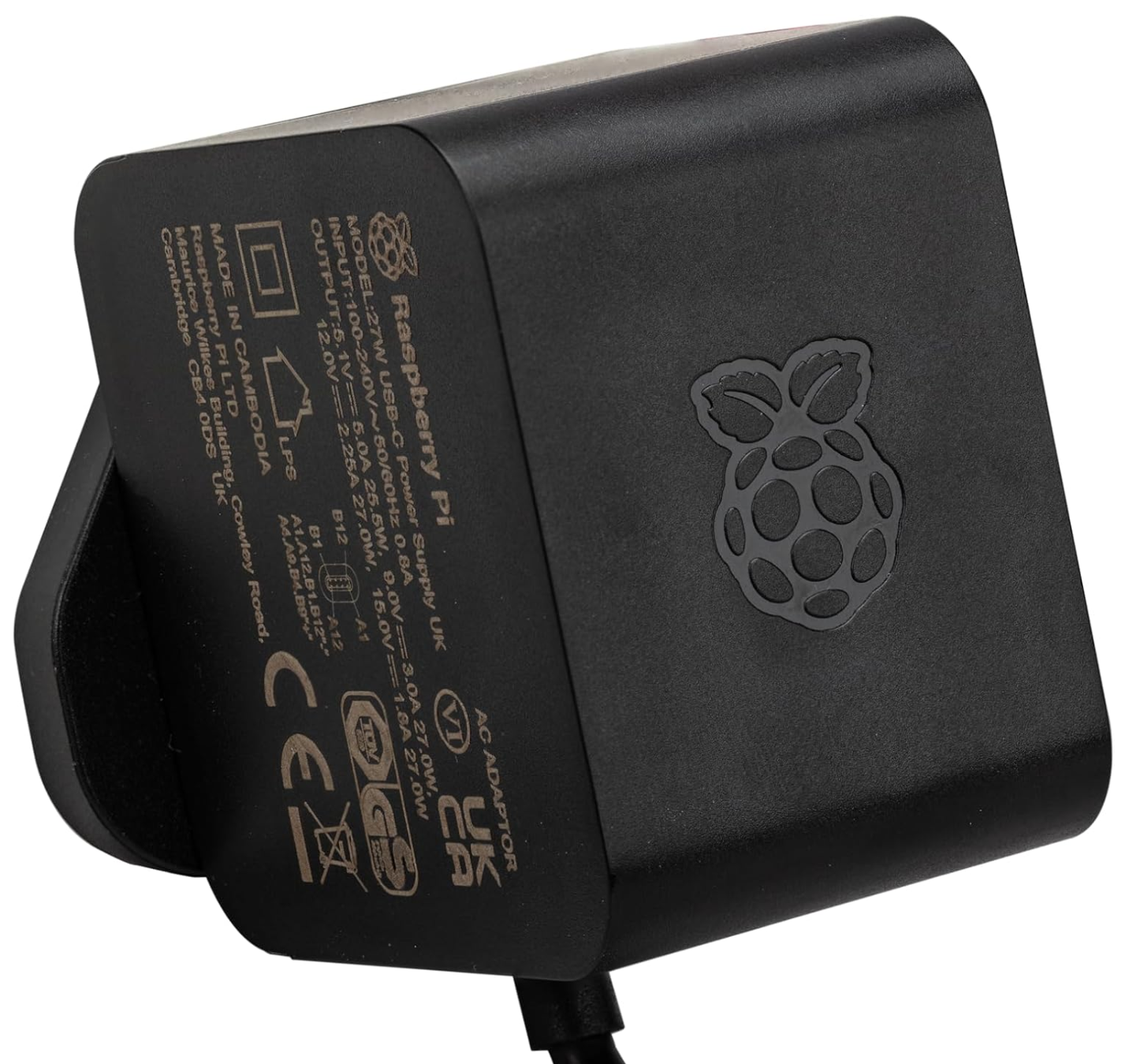

Power Supply#

Official Raspberry Pi 27W USB-C Power Supply

Raspberry Pi Power Supply

Raspberry Pi Pico with Pico OLED 1.3” Display#

This is used for easily extracting the MAC address of the Raspberry Pi during commissioning.

Pico OLED

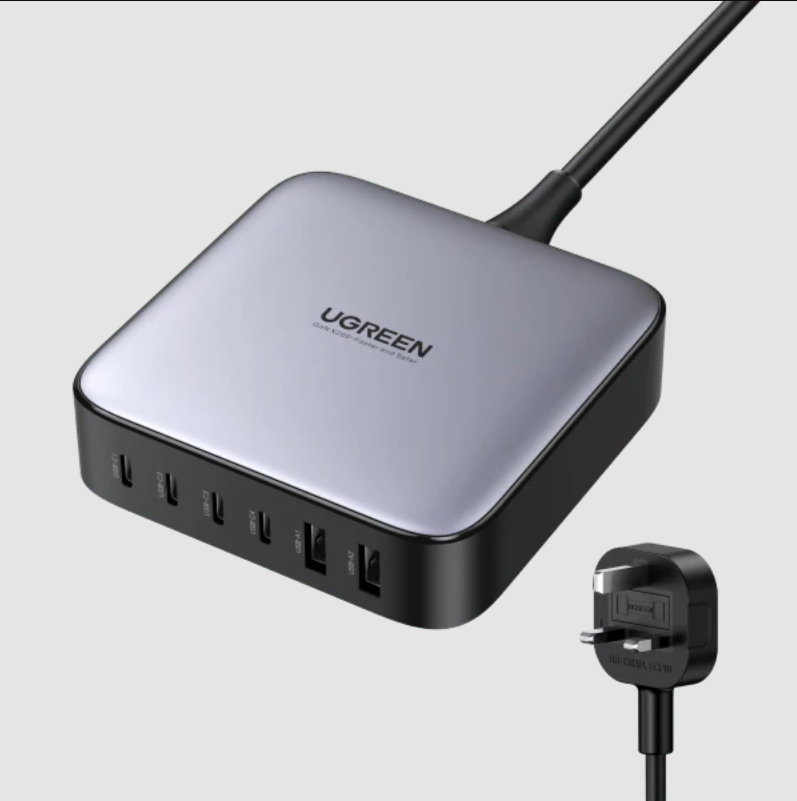

Alternative Power Supply#

If you plan on running a number of Pis. Then a modern GAN USB-C Power Delivery power supply with multiple ports is a good alternative. Make sure it can provide at least 5A at 5V per Pi.

e.g. Ugreen Nexode 200w

Ugreen Nexode
